7-60 P/N 13999-002 Info Manual
Section 7 Cirrus Design
Airplane Description SR20
Figure 7-12
AIRSPEED
INDICATOR
PRIMARY
FLIGHT DISPLAY
Serials 1005 thru 1336 ,1337
thru 1422 w/o PFD.
Serials 1337 & subs w/ PFD.
SR20_FM07_1013D
PITOT MAST
STATIC
BUTTONS
PITOT-STATIC
WATER TRAPS
ALTERNATE
STATIC
AIR SOURCE
VERTICAL SPEED
INDICATOR
ALTIMETER
ALTITUDE
TRANSDUCER
(OPTIONAL)
ALTITUDE
ENCODER
ANNUNCIATOR
PITOT
HEAT
LOGIC
CURRENT
SENSOR
HEATER
7.5A
PITOT
HEAT
CB
PITOT HEAT SW

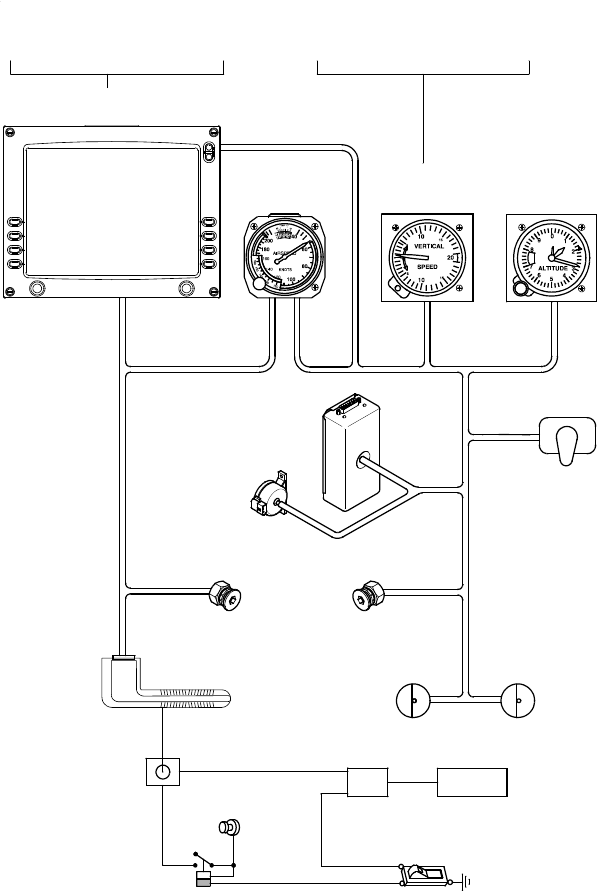

Pitot-Static System
September 2011
