7-58 P/N 13999-002 Info Manual
Section 7 Cirrus Design
Airplane Description SR20

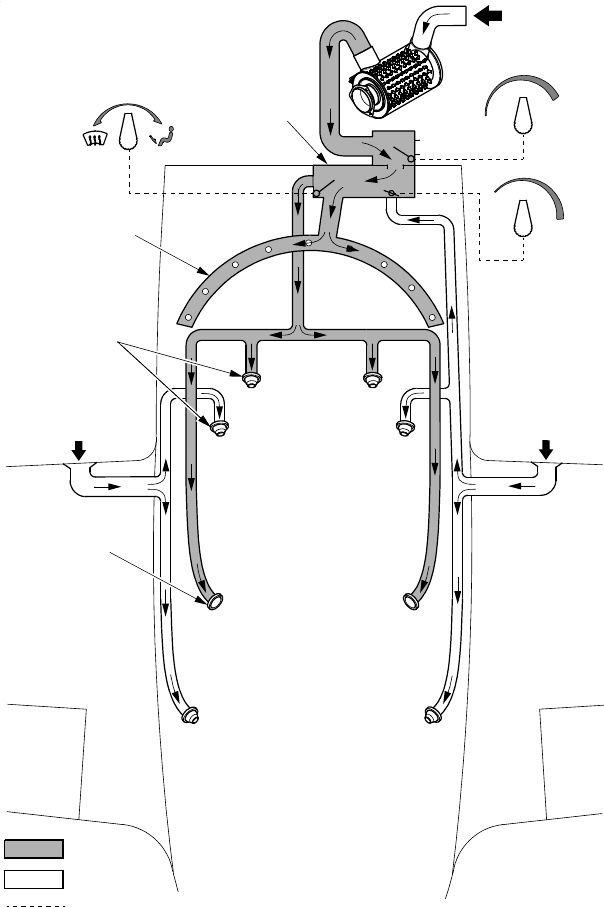

Figure 7-11
AIR INLET
FOOT-WARMER
DIFFUSER
AIR GASPER
FRESH AIR
CONDITIONED
AIR
MECHANICAL
CONNECTION
OFF
HEAT
COLD
WINDSHIELD
DEFROST
DIFFUSER
HVAC
PLENUM
TEMP.
CONTROL
HEAT EXCHANGER
SR20_FM07_1012B
FRESH AIR
INTAKE
FRESH AIR
INTAKE
CABIN HEAT/
DEFROST
SELECT
Heating and Ventilation
September 2011
