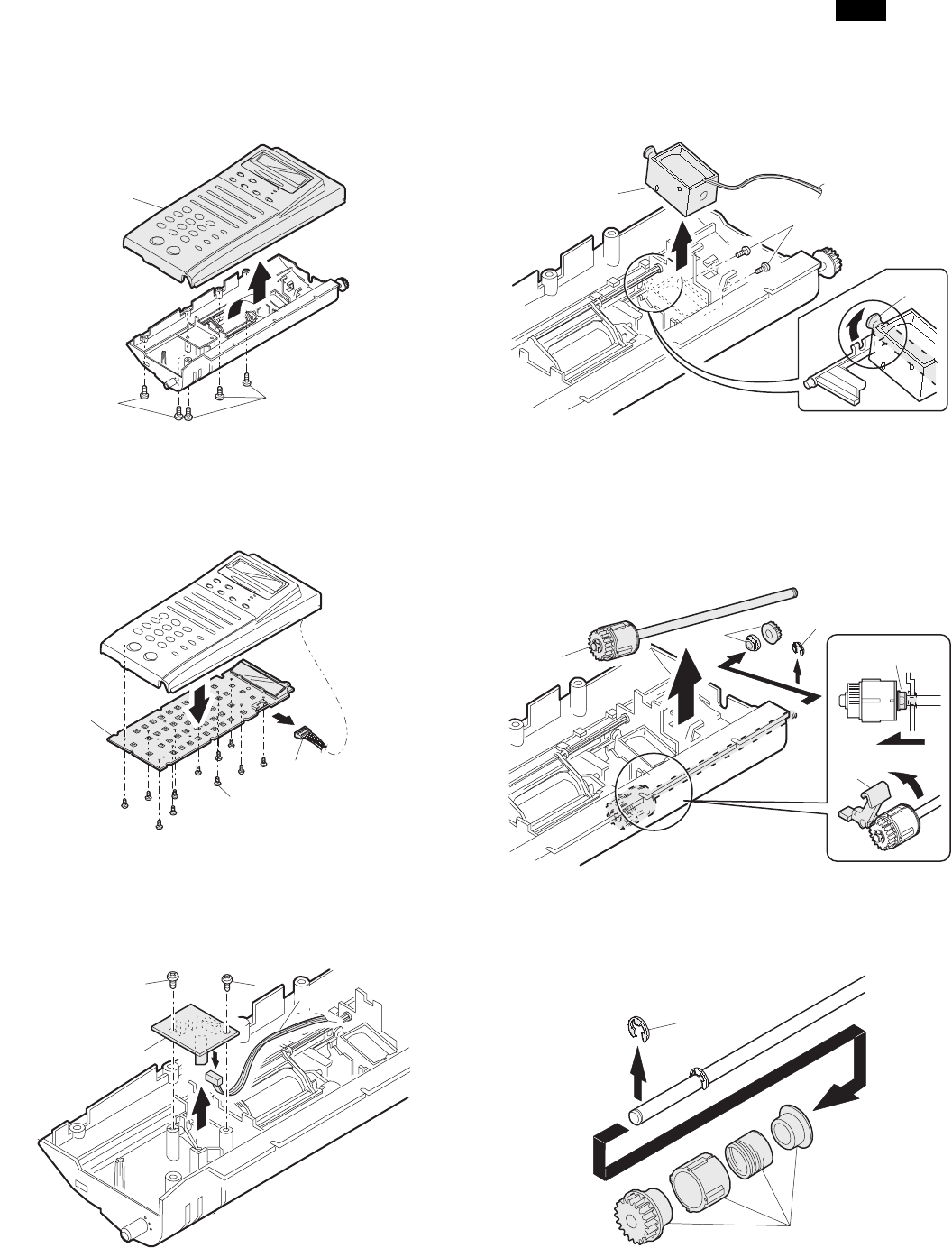

D. Remove the FAX operation panel unit.

1) Remove five screws.

2) Remove the FAX operation panel unit.

E. Remove the Fax panel PWB.

1) Remove eleven screws.

2) Remove the FAX panel PWB.

3) Remove the connector.

F. Remove the FAX sensor PWB.

1) Remove two screws.

2) Remove the FAX sensor PWB.

3) Remove the connector.

G. Remove the PU solenoid

1) Remove two screws.

2) Remove the PU solenoid.

H. Remove the clutch unit.

1) Remove the E-ring.

2) the pulley, and the bushing.

3) Slide the bushing in the arrow direction.

4) Lift the clutch pawl.

5) Remove the clutch unit.

I. Remove the clutch

1) Remove the E-ring.

2) Remove the parts.

AR-F152

7 – 32
