PLACING ORIGINALS
4-4

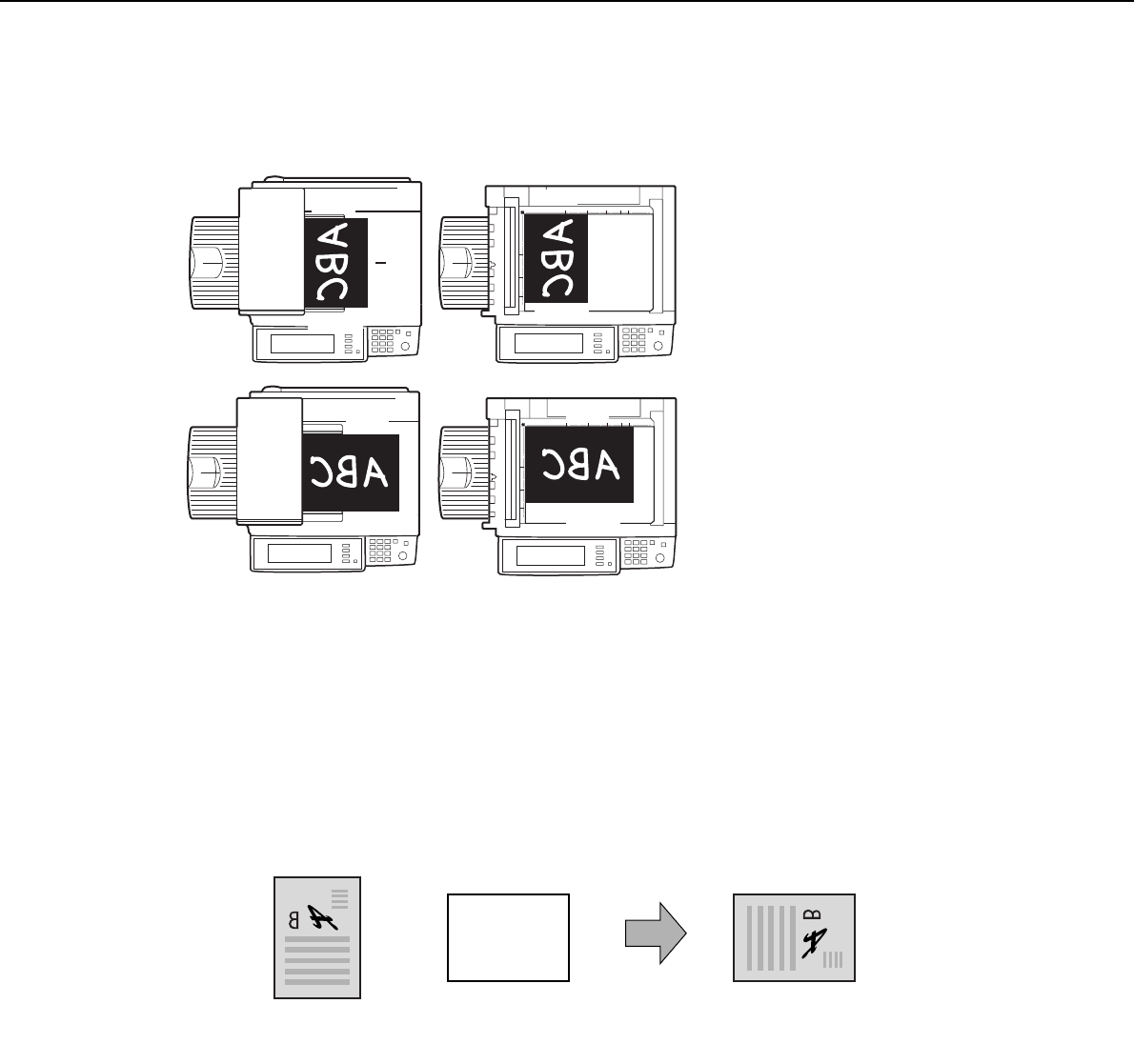

■ Standard original placement orientations
Place originals in the
document feeder tray or on
the document glass so that
the top and bottom of the
original is positioned as
shown in the illustration. If not,
staples will be incorrectly
positioned and some special
features may not give the
expected result.
■ Automatic copy image rotation - rotation copying
If the orientation of the originals and copy paper are different, the original image will be automatically rotated 90°
and copied. (When an image is rotated, a message will be displayed.) If a function is selected that is not suitable
for rotation, such as enlarging the copy to greater than 8-1/2" x 11" (A4) size or staple sorting with the saddle
stitch finisher, rotation will not be possible.
[Example]
●This function operates in both the auto paper select or auto image mode. (
"
Rotation copy setting
"
can be
disabled with a administrator setting. See page 16 of the administrator settings guide.)
Top
Bottom
Top
Bottom
Top
Bottom
Top
Bottom
Document feeder tray
Document glass
[Example 1]
[Example 2]
Orientation of original Orientation of paper Copy after rotation
Face down
Face down
Copy_SEC.book 4 ページ ２００６年１２月１３日 水曜日 午後３時１分
