MAIL-BIN STACKER
3-6

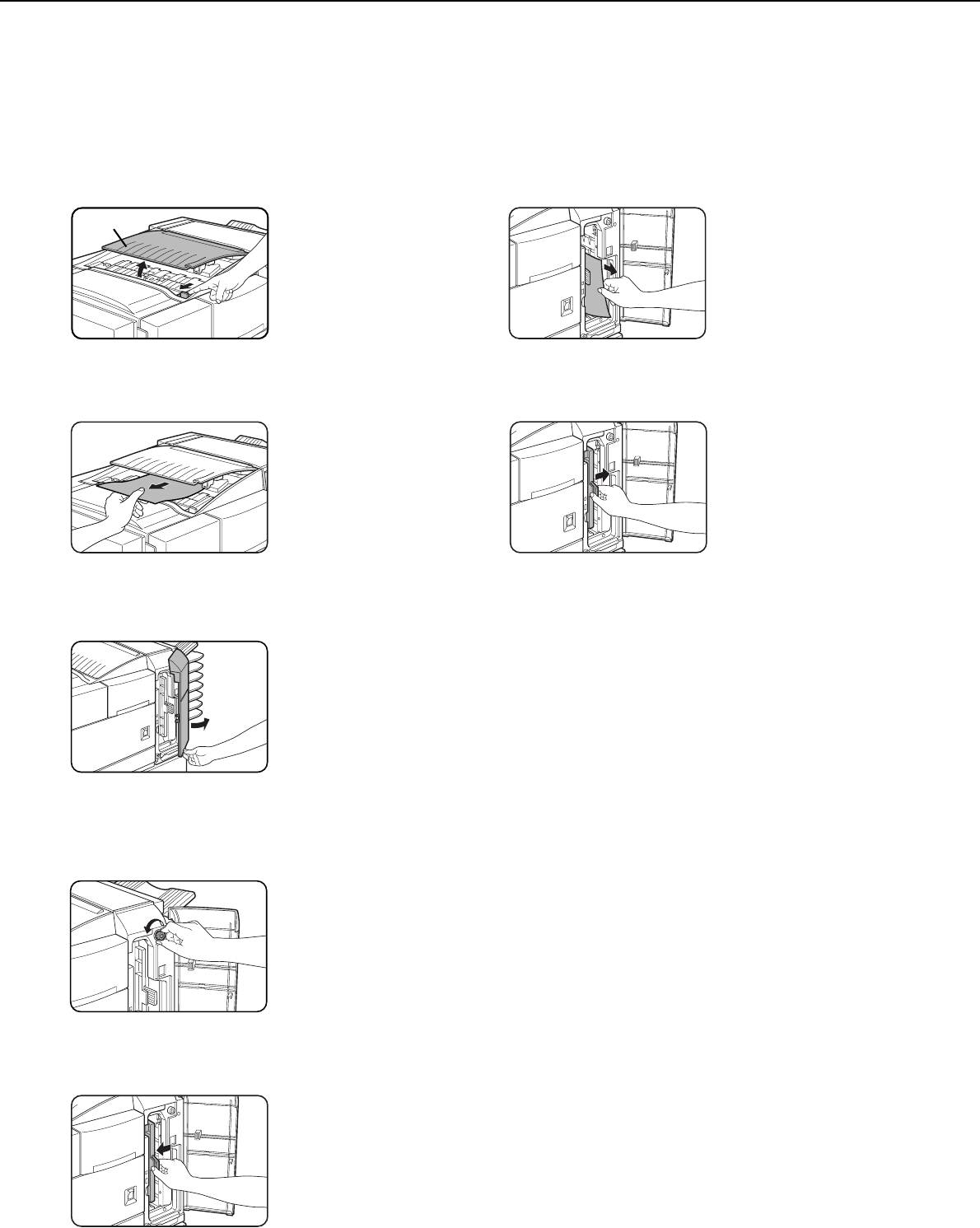

Misfeed in the mail-bin stacker
If a misfeed has occurred in the mail-bin stacker during printing, remove the misfed paper following the procedure
below.
1
Open the top cover.
Move the tab in the
direction of the arrow as
shown in the illustration
to open the top cover.
2
Remove the misfed paper.
Be careful not to tear the
misfed paper during
removal.
After removing the
paper, press down on
the top cover to close it.
3
If the misfed paper is not found in step 2,
open the front cover.
4
Turn the roller rotating knob in the
direction of the arrow to remove the
misfed paper.
5
Open the paper guide.
Unlatch the paper guide
and open it in the
direction of the arrow.
6
Remove the misfed paper.
Be careful not to tear the
misfed paper during
removal.
7
Close the paper guide.
Close the paper guide
securely.
8
Close the front cover.
Top cover
