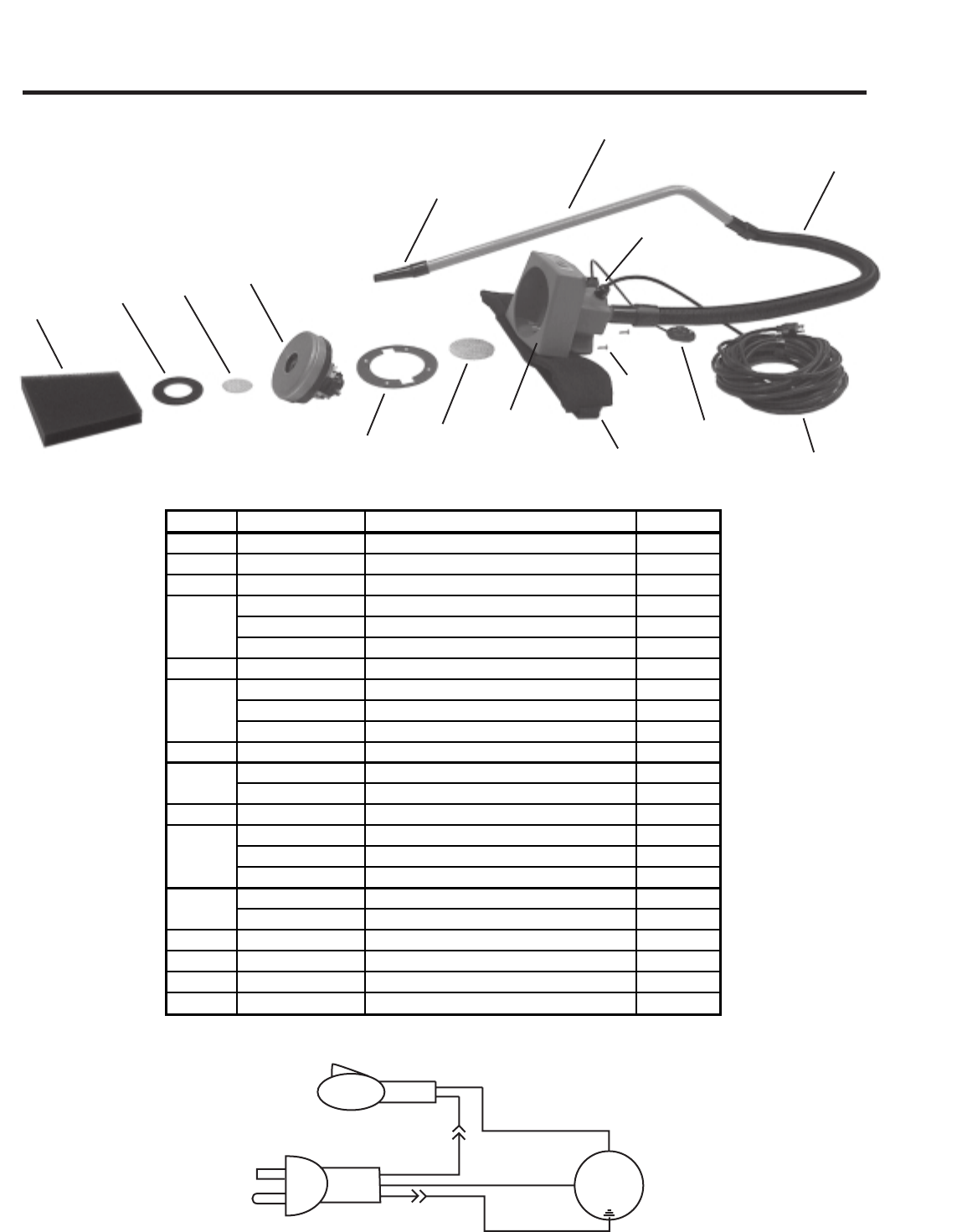

THE BLAST

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

ITEM PART NUMBE

R

DESCRIPTION QTY

1 223385 Filter, Intake 1

2 633401 Gasket, Screen 1

3 228501 Screen, Inlet 1

4 655204 Motor, 115V 1

650904 Carbon Brush, 115V Motor 2

911229 Terminal, 3/16 Female 2

5 633403 Gasket, Motor Mount 1

6 608570 Screen, Outlet 1

930006 Pop Rivets 3

980033 Washer, Flat 3

7 224285 Housing 1

8 631301 Belt, Shoulder Strap 1

W310D Screw, Belt: 10-32x1/2 FHP 2

9 962089 Screw, Motor Mount: 10x3/4 AB PHP 4

10 908064 Cord with Pendent Switch 1

S936P Terminal, Male 1

S948P Terminal, Female 1

11 908065 Cord, Power 1

911157 Connector, Ground 1

12 632401 Strain Relief, Cord 2

13 224180 Hose Assembly 1

14 229880 Wand 1

15 638808 Tool, Blower Nozzle 1

908064

908065

POWER CORD

VA C

MOTOR

WHT

BLK

WHT

GRN

1 2 3 4
