2-59 Calibrating the Fiery with the DTP41

Sharp AR-C360P EFI Color Guide - 59

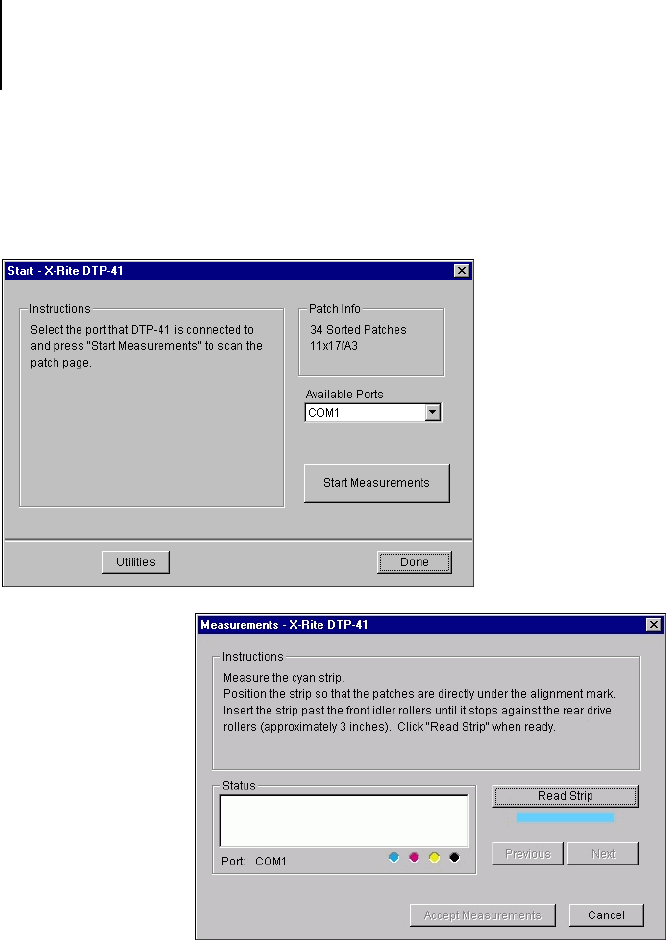

9. If necessary, choose the appropriate COM port for the DTP41 from

the Available Ports menu. Click Start Measurements.

10. Insert the

measurement

page into the

DTP41, starting

with the cyan

strip.

Follow the on-

screen

instructions to

align the page

properly.

11. Click Read Strip.

The DTP41 pulls

the measurement page through automatically.

After the measurement page is read, Calibrator instructs you to

insert and align the page again for the next color.

12. Repeat the measurement process for the magenta, yellow, and

black strips.
