Sharp AR-C360P User’s Guide

Printer and paper overview > 25

Tray and stacker examples

Loading Trays 1 to 4

Tray 1 is used in the following example.

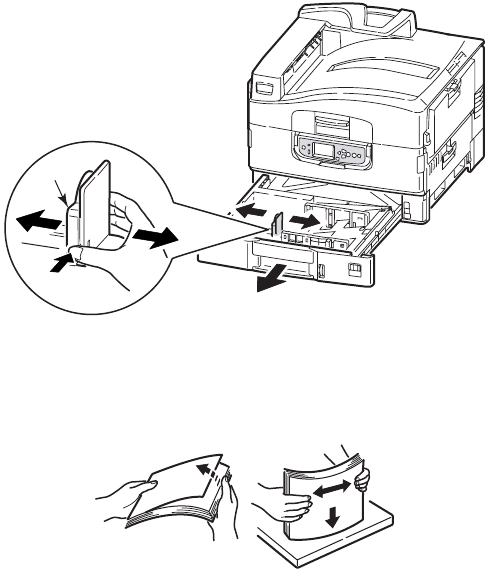

1. Pull out the tray.

2. Press the paper rear stopper tab (1) and adjust the tab to the

required paper size.

3. Fan the paper to be loaded then tap the edges of the stack on

a flat surface to make it flush.

4. Load the paper (face down and top edge towards the right for

letterhead paper), press the tab (2) on the paper guide and

adjust the guides (3) for a snug fit to the paper.
