9 OF 14

ER-A Model SRV (Service) Mode – Free Key Overview

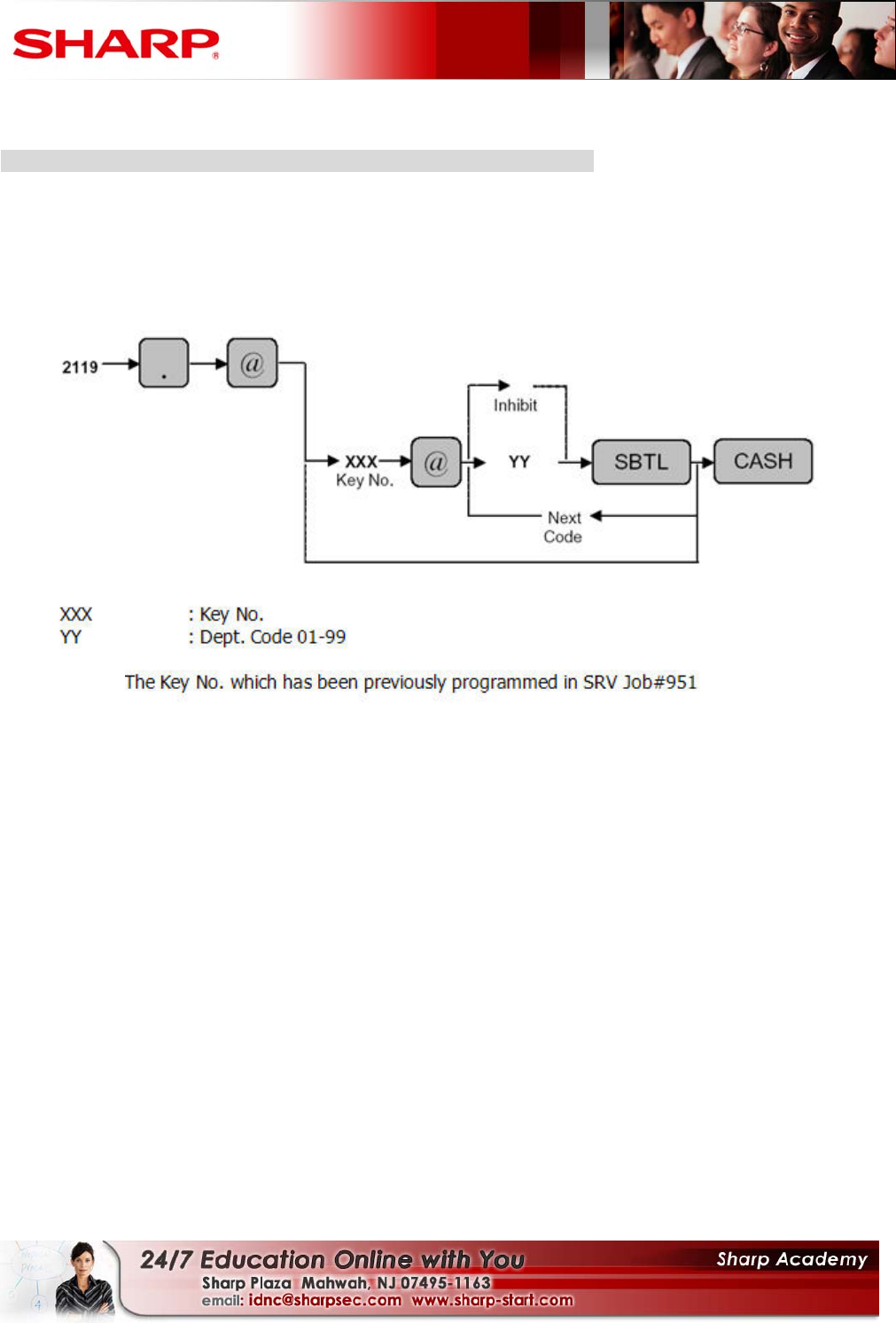

4. PGM2 Job Code 2119 – Department location on the keyboard

Departments can be located on a key that has a defined

Key No.

and is not occupied by a function key.

The following key operation is used to assign a department to a physical key position.

From PGM2 Mode

Example: Assigning Dept 8 to Key No. 79: 2119 [@/FOR] 79[@/FOR] 8 [SBTL] [CA/AT]

NOTE:

Page 46 of 108
