Installing the Printer Driver
119
4. Network
Printer
17

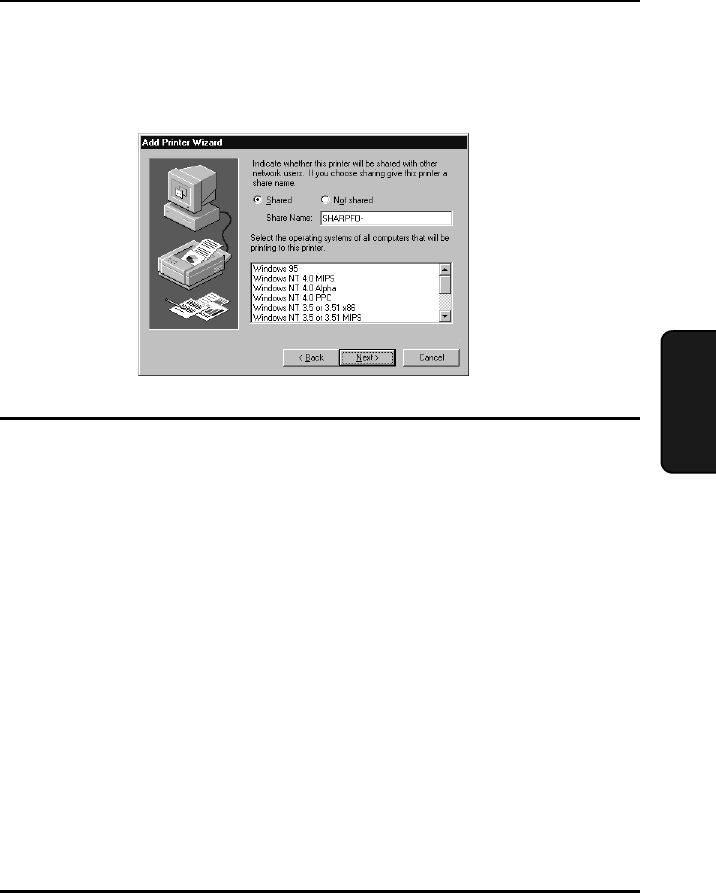

Follow the instructions on your screen. When the following window appears,
select Share. If you would like to change the Share name, enter a new name
(this must be 8 characters or less to allow sharing with Windows 98/Me
computers). Click Next.
18
Follow the instructions on your screen to finish installing the printer driver.
Client-Server Network: Installing the Printer Driver in a
Client Computer
There are two ways to install the printer driver in a client computer on a client-
server network: using the Integrated Installer in the PRINTER UTILITIES CD-
ROM, or using Add Printer in the Printers folder in Windows.
♦ If you are installing the printer driver in a Windows 2000/XP client when the
server is NT Server, see page 122.
Important: The printer driver must be installed in the server before it can be
installed in a client computer.
Using the Integrated Installer
The Integrated Installer is included in the PRINTER UTILITIES CD-ROM that
came with the network printer kit. The following procedure can be used in all
operating systems.
1
Insert the PRINTER UTILITIES CD-ROM into your CD-ROM drive.
If the “Readme First” window appears, go directly to Step 4.
