Operating in Automated Mode

3-14 Tenth Edition 9871

Entering Cartridges through the PCAP

To enter cartridges through the PCAP:

1. Issue the enter command at the operator console.

• The PCAP status display area on the LSM operator panel displays

ENTER.

2. Open the PCAP door as shown in Figure 3-9.

• The panel displays Door Open.

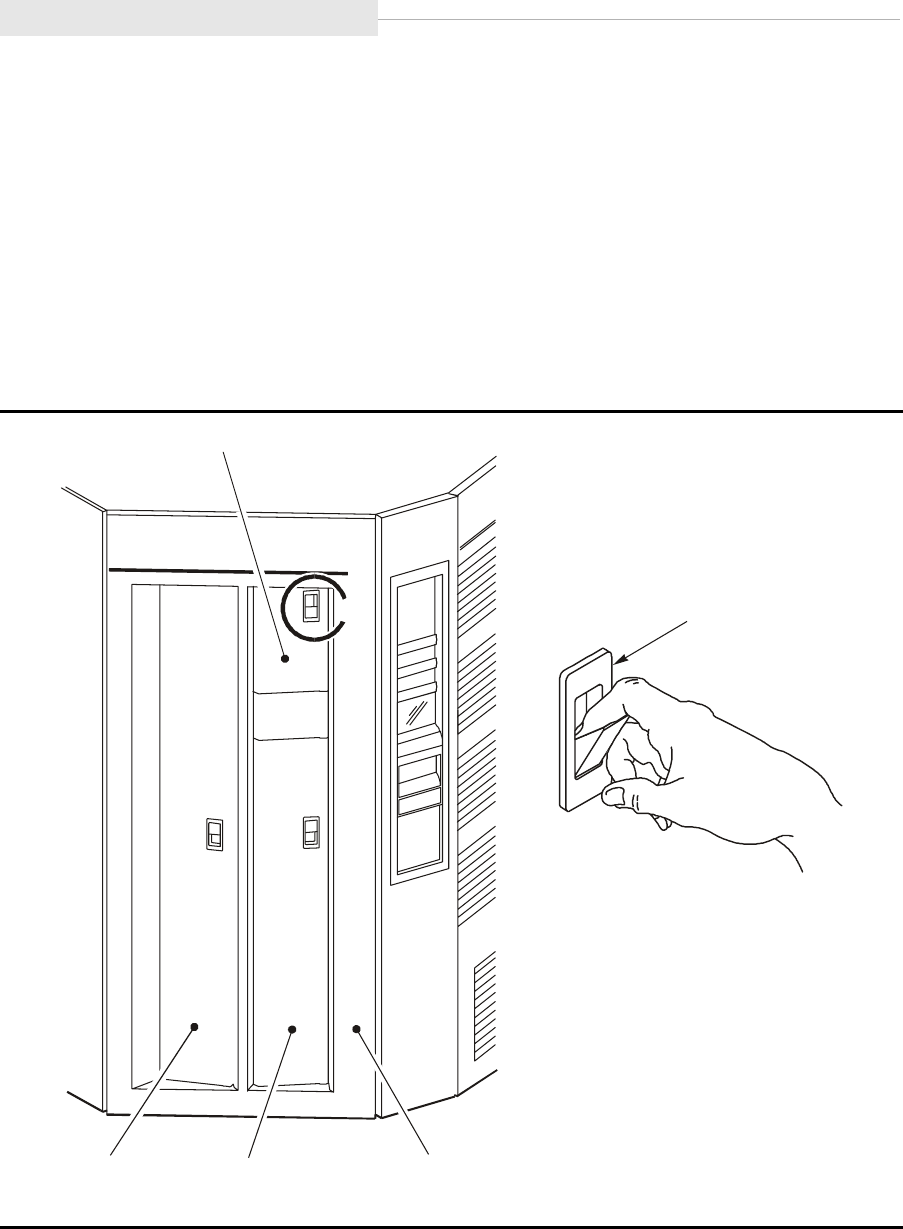

Figure 3-9. Priority Cartridge Access Port, Closed

CAP 0CAP 1

(OPTIONAL)

LSM

ACCESS

DETAIL A

PCAP

LATCH
