TDB3108, WF3208 Installation

8 4/30/2013 Bradley • 215-1187 Rev. P; ECN 13-00-001

Installing the Drain

Rough in supply and drain piping as

required for your installation.

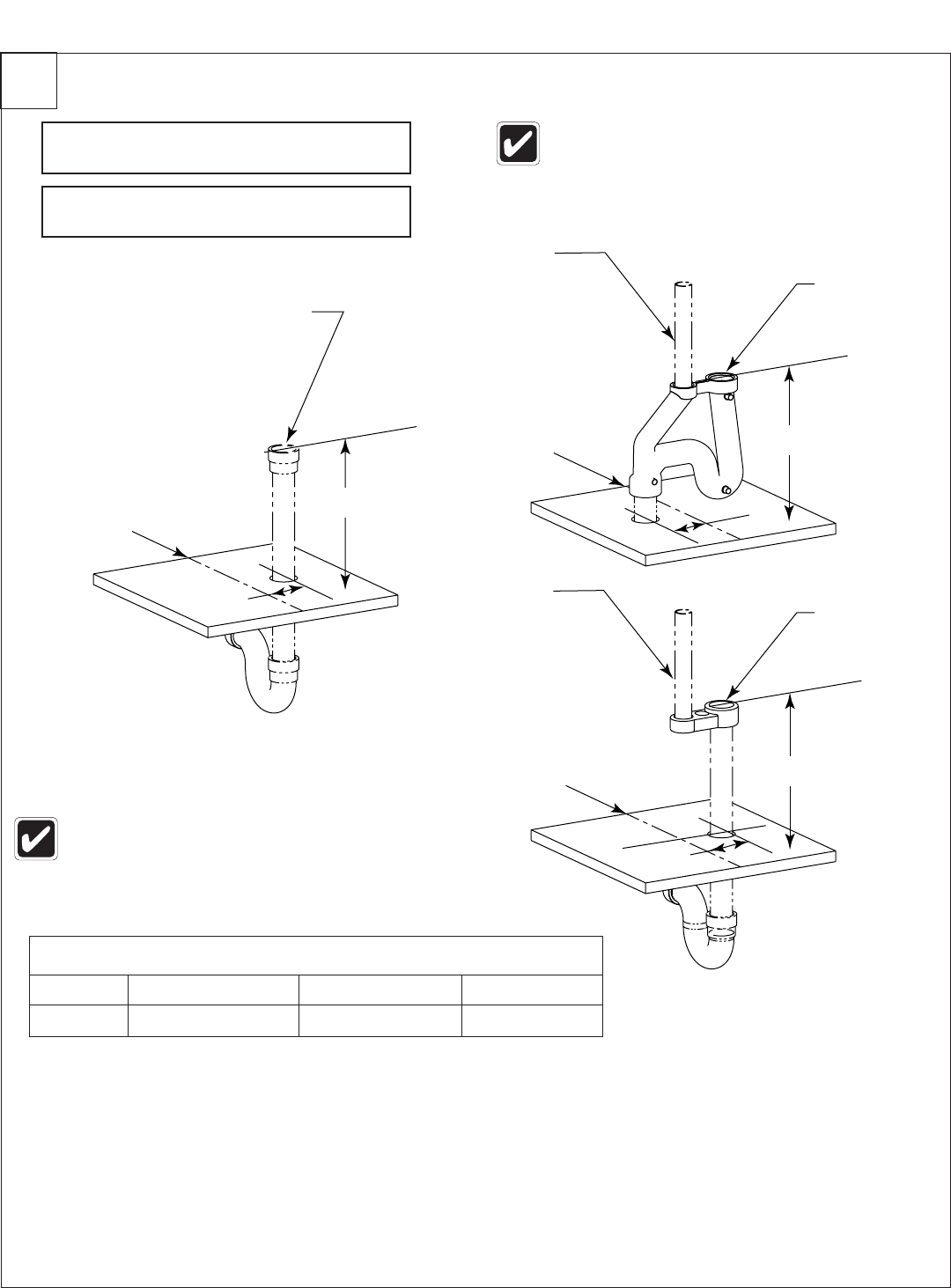

Assemble the drain to the dimension shown

below for the bowl size you are installing.

All piping shown in dotted lines

to be supplied by installer.

Table 1 — “B” Trap Dimensions

Dim Standard Height Juvenile Height TAS

B 23-3/8" (594) 22-1/2" (572mm) 24-1/2" (622mm)

Vent or Tie Pipe

(Supplied by

Installer)

Vented Trap

(111-024)

B - See Table 1

(102)

Centerline of

Washfountain

Types B, H

2" NPT Coupling if Tie

Pipe is Not Required

(Supplied by Installer)

B - See Table 1

(102)

Centerline of

Washfountain

Types A, O

Vent or Tie Pipe

(Supplied by

Installer)

Optional Tie Pipe

Bracket (S70-082)

B - See Table 1

(102)

Centerline of

Washfountain

Types A, O with Tie

Pipe Bracket Option

See Rough-In information for

dimensions not shown.
