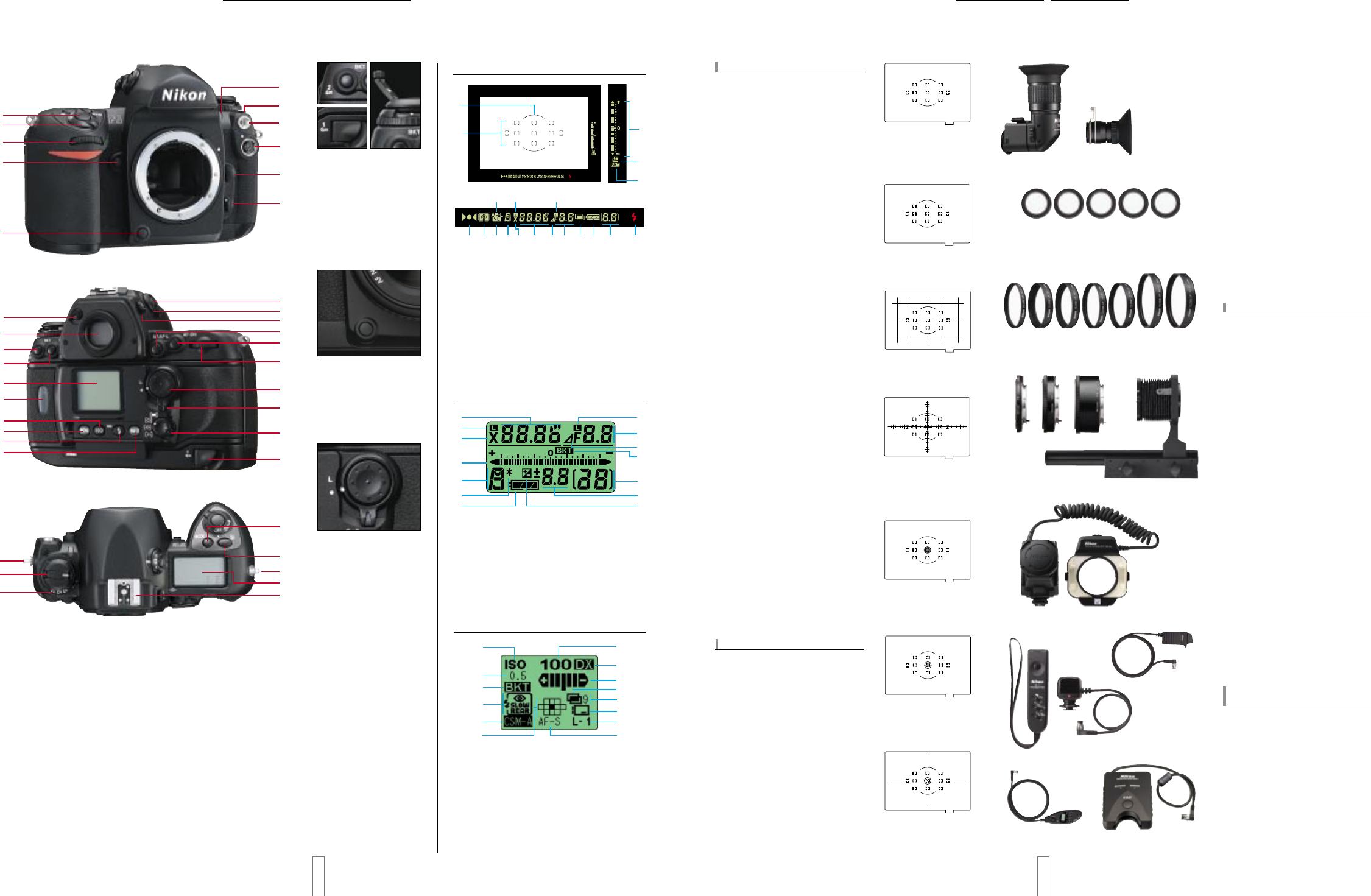

Nomenclature

1 Shutter release button

2 Power switch

3 Sub-Command Dial

4 Depth-of-field preview button

5 Function button

6 Self-timer indicator LED

7 Film advance mode selector lock

release

8 Sync terminal

9 10-pin terminal

! Lens release button

" Focus mode selector

# Eyepiece shutter lever

$ Viewfinder

% Auto Exposure Bracketing/Film rewind

(R2) button

& Command lock button

( Rear LCD panel

) Film confirmation window

~ Film speed (ISO) button

+ MENU button

, Flash sync mode button

- INFO button

. Metering system selector lock release

/ Metering system selector

: Diopter adjustment knob

; AE/AF-L button

< AF start button

= Main-Command Dial

> Multi-selector

? Multi-selector lock lever

@ AF Area mode selector

[ Film rewind (R1) button

\ Camera strap eyelet

] Film rewind crank

^ Film advance mode

_ Exposure mode button

{ Exposure compensation button

| Camera strap eyelet

} Top LCD panel

V Accessory shoe

(

)

]

;

[

}

{

Film rewind

You can choose automatic or

manual film rewind. Automatic

film rewind at the end of film

roll is also possible.

Function button

Customize the Function Button to

perform the task you want —

including FV Lock, AE-L/AF-L,

Flash Cancel and Metering

mode.

Multi-selector

Lets you select focus area when

shooting; allows you to select

the function in Menu mode.

The Controls The System

1 12mm-dia. reference circle for

Center-Weighted Metering

area

2 Focus area (focus brackets)

3 Electronic analog exposure

display

4 Exposure compensation

5 Auto Exposure Bracketing

6 Auto Exposure Lock

7 Shutter speed lock

8 Aperture lock

9 Focus indicators

! Metering system

" FV lock

# Exposure mode

$ Sync speed

% Shutter speed

& Aperture stop

( Aperture

) Multiple exposure

~ Battery power

+ Frame counter/Exposure com-

pensation value

, Flash ready-light

1 Shutter speed

2 Shutter speed lock

3 Sync speed

4 Electronic analog exposure

display

5 Exposure mode

6 Flexible program

7 Battery power

8 Aperture lock

9 Aperture

! Aperture stop

" Auto Exposure Bracketing

# Frame counter

$ Exposure compensation value

% Exposure compensation

1 ISO

2 EV steps in Auto Exposure

Bracketing

3 Auto Exposure Bracketing

4 Flash sync mode

5 Custom Setting

6 Focus area

7 Film speed

8 DX

9 Auto Exposure Bracketing status

! Multiple exposures

" Number of shots in multiple

exposure

# Data imprint

$ Lens number

% AF servo mode

6 7 8

9 ! " # % ( ) ~ + ,&$

Top LCD Panel Indications

Rear LCD Panel Shooting

Data Indications (Normal*)

Type B: This standard screen

offers unobstructed viewing and

easy focusing on its overall

matte surfaces.

Type U: For lenses with focal

lengths longer than 200mm.

Type E: Its grid patterns help you to

compose a picture.

Type M: This shows cross hair

and millimeter scales. Ideal for

high-magnification close-ups and

astrophotography.

Type J: Enables manual focus-

ing with microprism. Suitable

for general photography

Type A: Features a matte Fresnel

field with split-image rangefinder

and microprism collar.

Type L: Same as Type A but with

split-image rangefinder line at a

45° angle.

DR-5

Eyepiece Correction Lenses

DG-2

PK-11A PK-12 PK-13

No.0 No.1 No.2 No.3T No.4T No.5T No.6T

PB-6

SB-29s

ML-3

MC-30

MC-20

MV-1

Interchangeable Focusing Screens

These special Nikon optics are ideal

for manual focusing and as composi-

tion aides, and have no effect whatso-

ever on the F6’s autofocus operation.

All are made of Nikon ground glass.

There are seven types available (B, U,

E, M, J, A, and L).

Eyepiece Correction Lenses

Five optional eyepiece correction

lenses allow you to adjust the diopter

beyond its standard range of –3 to

+1m

-1

Rubber Eyecup DK-17

Increases viewing comfort and pre-

vents stray light from entering the

viewfinder.

Antifog Finder Eyepiece DK-17A

Made from a transparent plastic and

features a special surface coating

which reduces fogging on the eye-

piece.

Right-Angle Viewing Attachment

DR-5

Provides an upright, frontward-facing

image with right-angle viewing. Select

a reproduction ratio of 1:1 or 2:1.

Eyepiece Magnifier DG-2

Provides 2x magnification of the cen-

tral portion of the viewfinder image.

Optional Eyepiece Adapter DK-7 is

required when attaching to the F6.

Auto Extension Rings PK-11A/12/13

Slide on and off your camera in sec-

onds for a wider range of reproduction

ratios.

Bellows Attachment PB-6

Mount between the F6 and the lens for

close-up and macro photography.

Optional accessories include PB-6E

Extension Bellows, PB-6M Macro Copy

Stand and PS-6 Slide Copying Adapter.

Macro Adapter Ring BR-2A

Enables lenses to be mounted in

reverse for a relatively high reproduc-

tion ratio.

Focusing Stage PG-2

Simplifies close-up focusing when

using a tripod-mounted camera.

Close-Up Attachment Lenses

Make close-up photography much easier.

TTL Macro Speedlight SB-29s

Gives you the choice of flash-front or

selective-relief lighting.

Modulite Remote Control Set ML-3

Provides infrared LED beam remote con-

trol for two separate channels to enable

automatic camera operation from a dis-

tance of up to 8 meters (26 ft.).

Remote Cord MC-20 (0.8m/2.6 ft.)

Enables remote firing of the F6 and

setting of exposures up to 9 hrs. 59

min. 59 sec. long. The exposure time

appears in the rear LCD.

Remote Cord MC-30 (0.8m/2.6 ft.)

Enables remote firing with a trigger-

lock function.

Extension Cord MC-21 (3m/9.8 ft.)

Available for 10-pin remote acces-

sories.

Connecting Cord MC-23 (0.4m/1.3 ft.)

Connects two F6 cameras for simulta-

neous shutter release.

Data Reader MV-1

Transfers shooting data stored in the

F6 to a CompactFlash™ card. Data

then can be transferred from the mem-

ory card to your personal computer.

Viewfinder Accessories

Viewfinder Information

Close-up Accessories

Remote control accessories

Data Communication

Accessories

*In addition to Normal display, Detailed and Large displays are

available.

14 15

1 2 3 4 5 6 7 8
