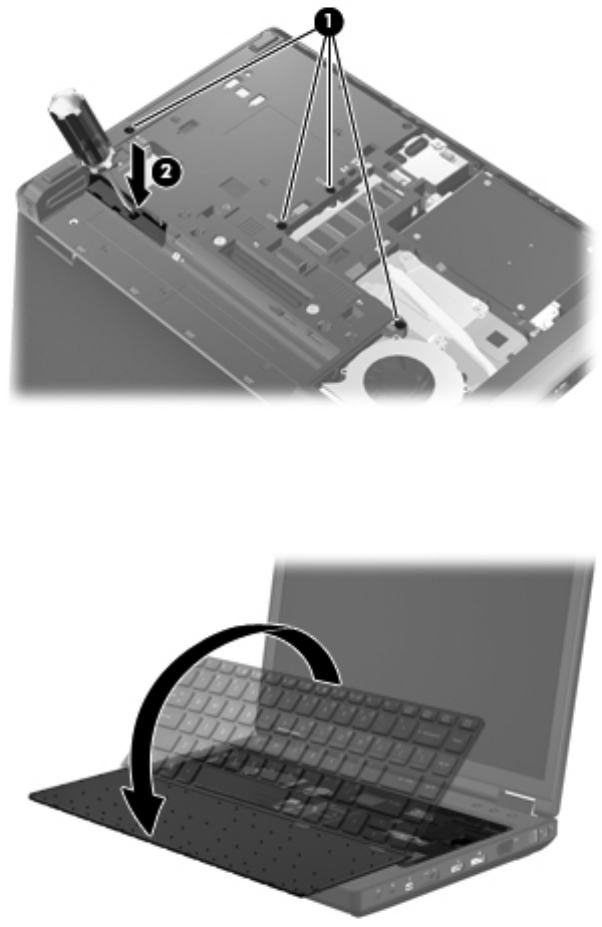

Insert a screwdriver or similar thin tool into the keyboard release area (2), and then press on

the back of the keyboard until the keyboard disengages from the computer.

Turn the computer right-side up with the front toward you.

6. Lift the rear edge of the keyboard, and then swing the keyboard up and forward until it rests

upside down on the palm rest.

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

then disconnect the keyboard cable (2) from the system board.

48 Chapter 4 Removal and replacement procedures
