Appendix

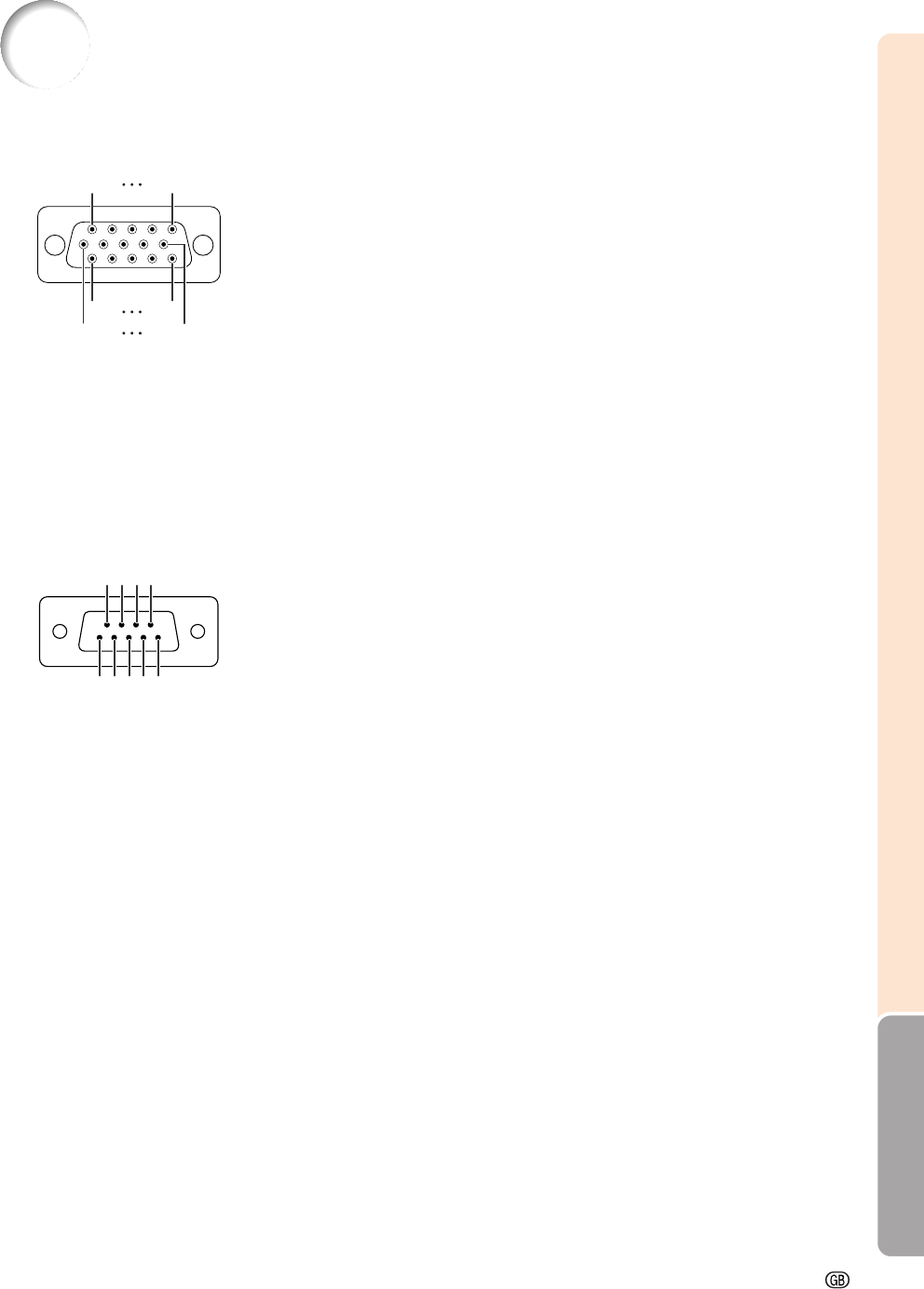

Connecting Pin Assignments
5
10
15
1
11
6
INPUT 1 COMPUTER/COMPONENT Signal Terminal: 15-pin Mini D-sub female connector
Component Input
1. P
R
(C
R
)
2. Y
3. P
B
(C
B
)
4. Not connected
5. Not connected
6. Earth (P
R
)
7. Earth (Y)
8. Earth (P
B
)
9. Not connected
10. Not connected
11. Not connected
12. Not connected
13. Not connected
14. Not connected
15. Not connected
RS-232C Port: 9-pin D-sub male connector
Pin No. Signal Name I/O Reference
1 Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 Reserved Connected to internal circuit
5 SG Signal Ground Connected to internal circuit
6 Reserved Connected to internal circuit
7 Reserved Connected to internal circuit
8 Reserved Connected to internal circuit
9 Not connected
6789
1
2345
RGB Input
1. Video input (red)
2. Video input (green/sync on green)
3. Video input (blue)
4. Not connected
5. Not connected
6. Earth (red)
7. Earth (green/sync on green)
8. Earth (blue)
9. Not connected
10. GND
11. Not connected
12. Not connected
13. Horizontal sync signal: TTL level
14. Vertical sync signal: TTL level
15. Not connected
XV_Z10E_E_p52_62.p65 03.11.7, 4:19 PM57
