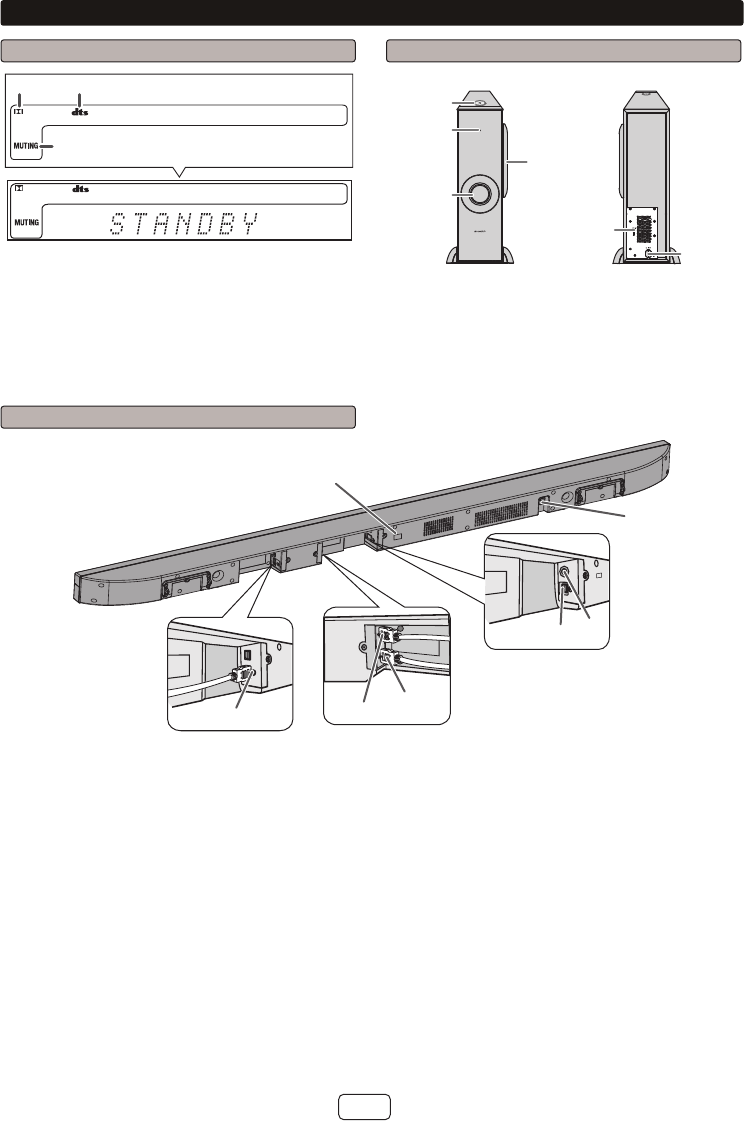

Controls and indicators (continued)

 Display

DIGITAL

DIGITAL

12

3

1. Dolby Digital Indicator

2. DTS Indicator

3. Muting Indicator

 Subwoofer

5

3

4

2

6

1

FRONT VIEW REAR VIEW

1. NFC detection area

2. Power/Pairing Indicator

3. Bass Reﬂ ect Duct

4. Woofer

5. SW LINK (Subwoofer Link) button

6. AC Power Lead

 Sound Bar Rear Panel

7

6

5

4

3

2

1

1. IR OUT Terminal

2. HDMI OUT (TV ARC) Socket

3. HDMI IN 1 Socket

4. HDMI IN 2 Socket

5. Optical IN Socket

6. Audio IN Terminal

7. AC Power Lead
